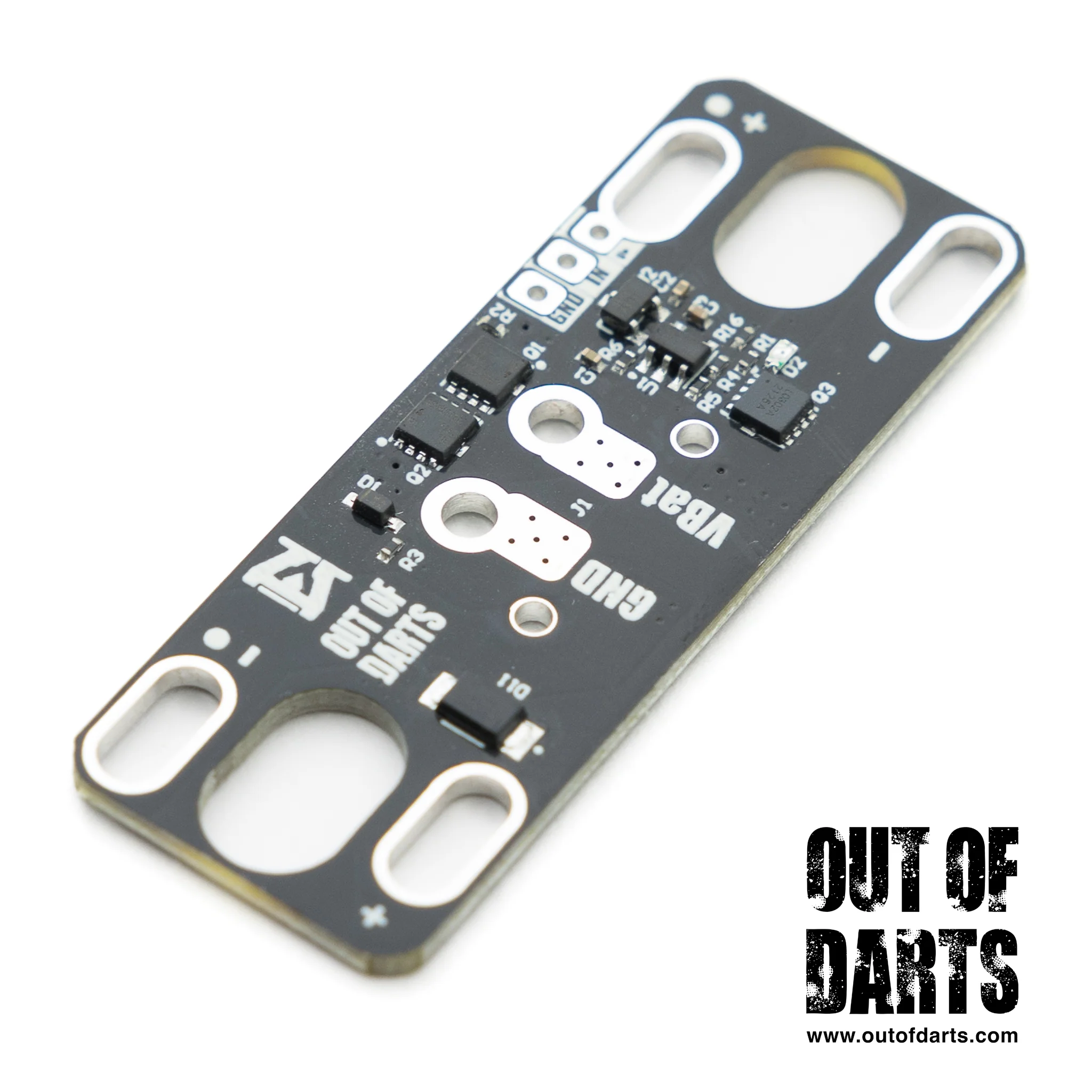

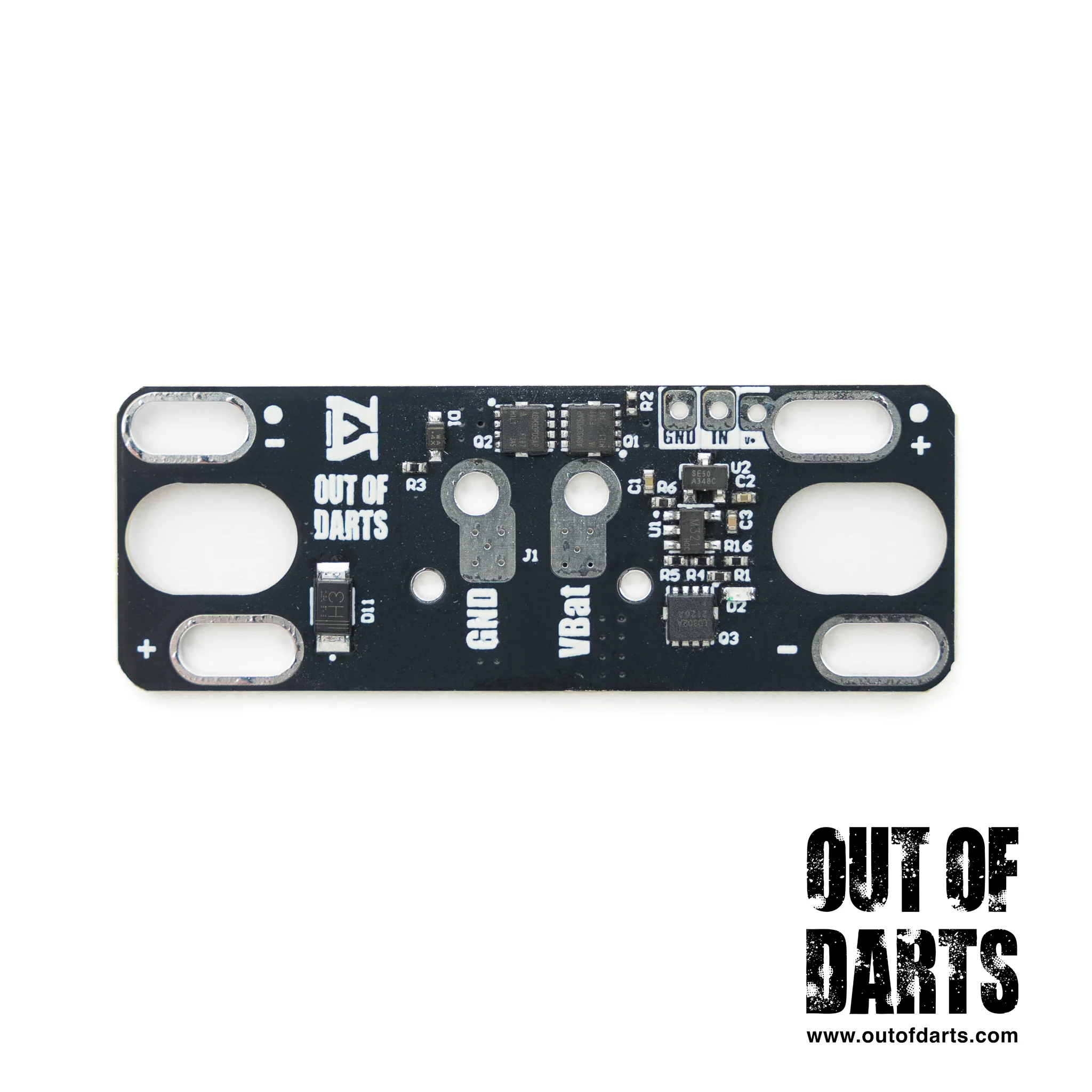

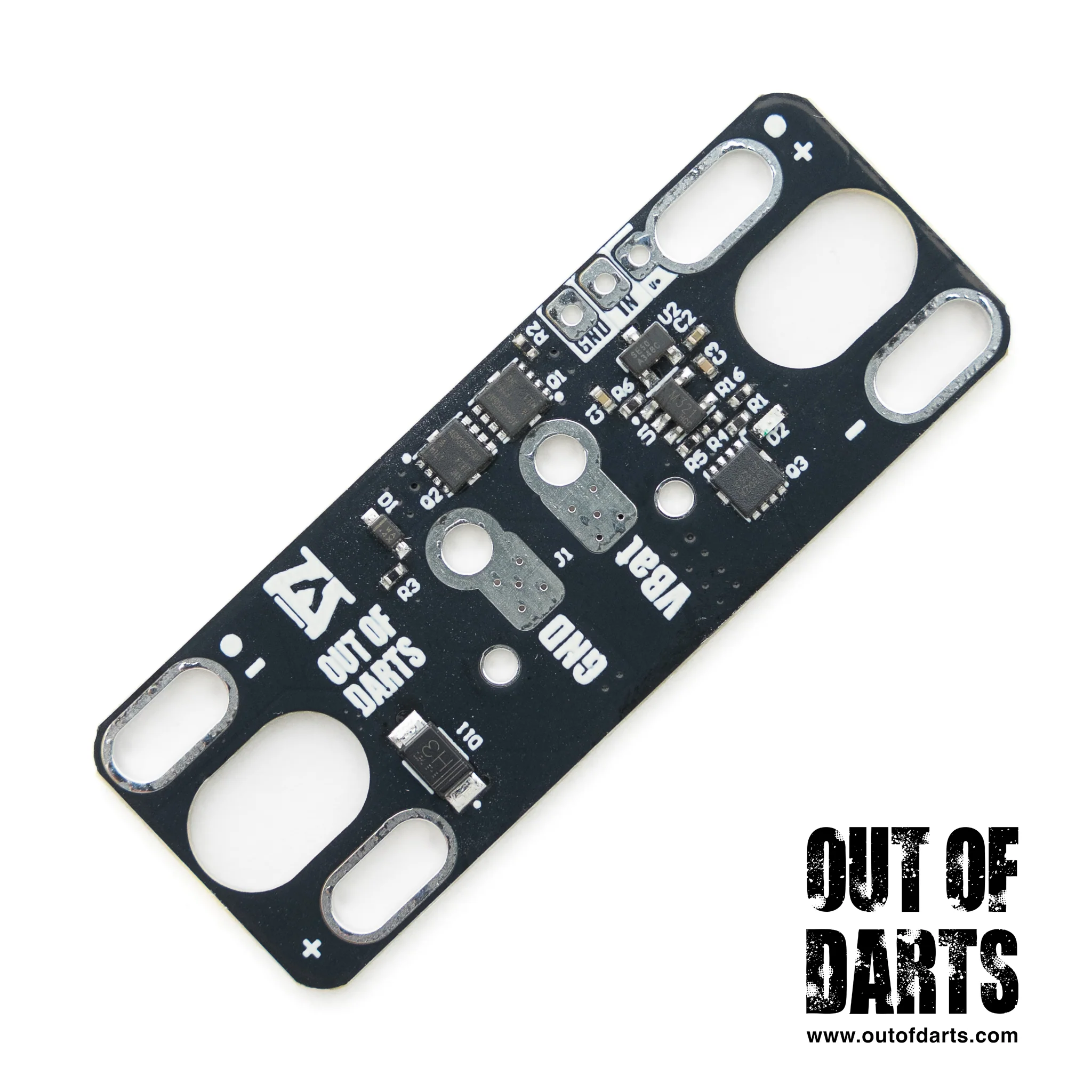

Eli Wu MOSFET Motor-Spanning Board

The Eli Wu MOSFET Flywheel Motor-Spanning Board is a redesigned span board PCB that's built to make stock flywheel blasters as easy to mod as possible! There's no need to replace your rev switch; the MOSFET isolates it from the higher voltage components! The board features an optional XT-60U board connector and standard solder terminals, allowing greater flexibility when rewiring your blaster.

FEATURES:
• MOSFET Span Board
• Designed by Eli Wu for Out of Darts

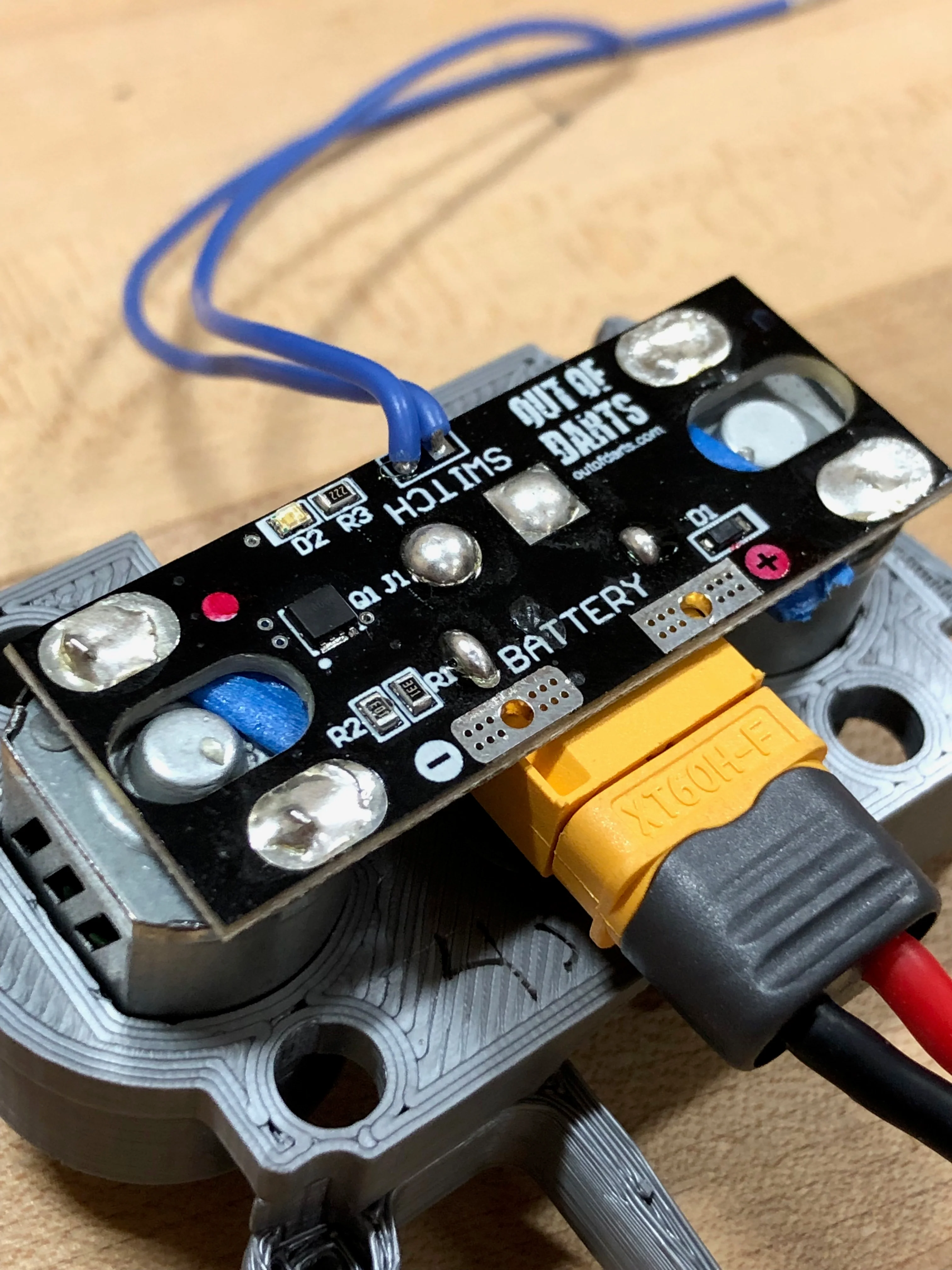

• Solder to motors directly, then to stock switch and battery terminal
• Trigger by connecting a switch to the IN and V+ terminals
• For use in most flywheel dart blasters

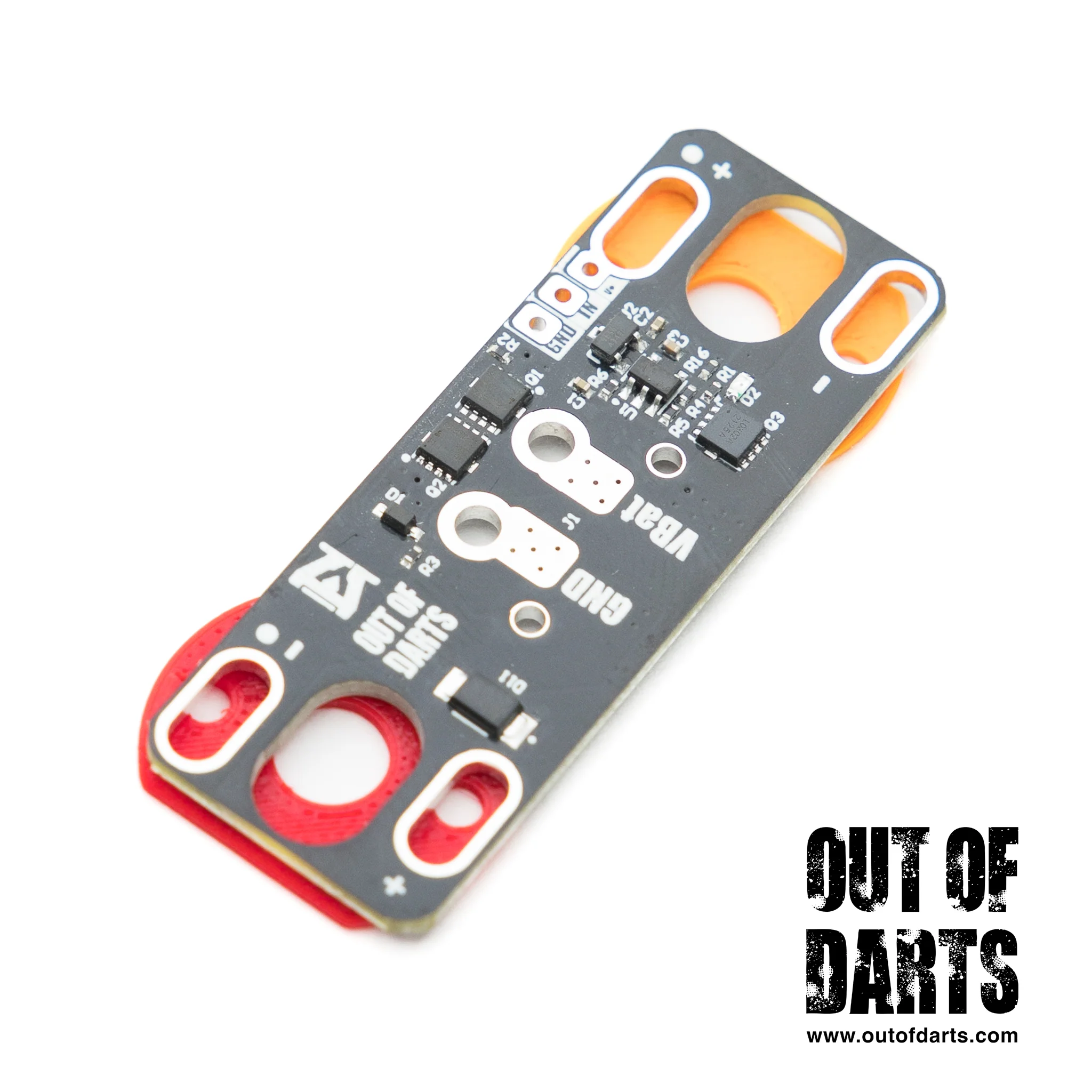

• Includes 3D printed spacers to prevent shorts
• Optional XT60U makes cage swapping and maintenance easier
• Compatible with all standard flywheel cages
• Not compatible with canted/tilted cages
• Not compatible with PWM boards

Note: When installing, match red dots on your motors to the dots on the board.

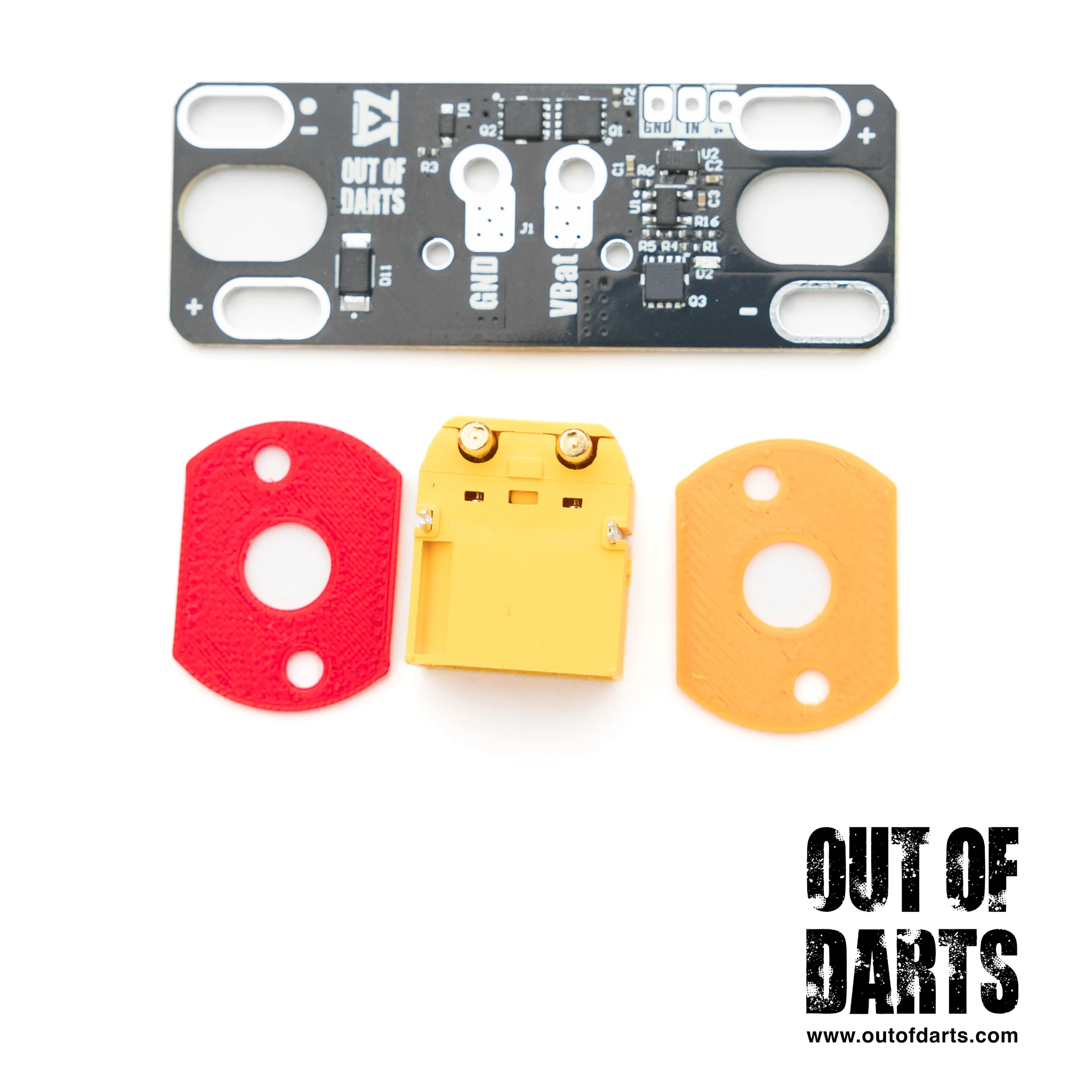

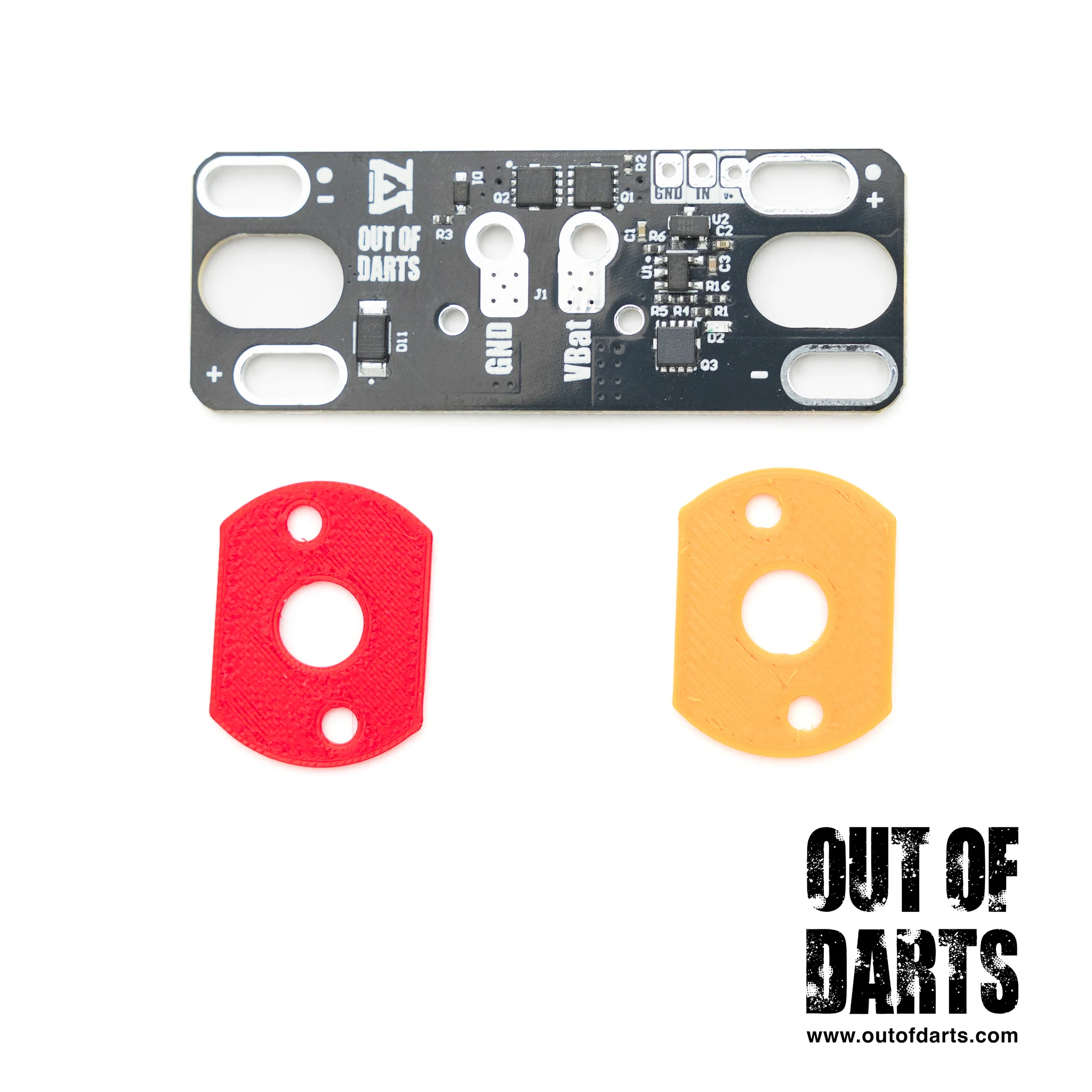

INCLUDES:
• 1 MOSFET Span Board*
• 2 3D-printed motor spacers
• 1 XT60U board connector (optional)

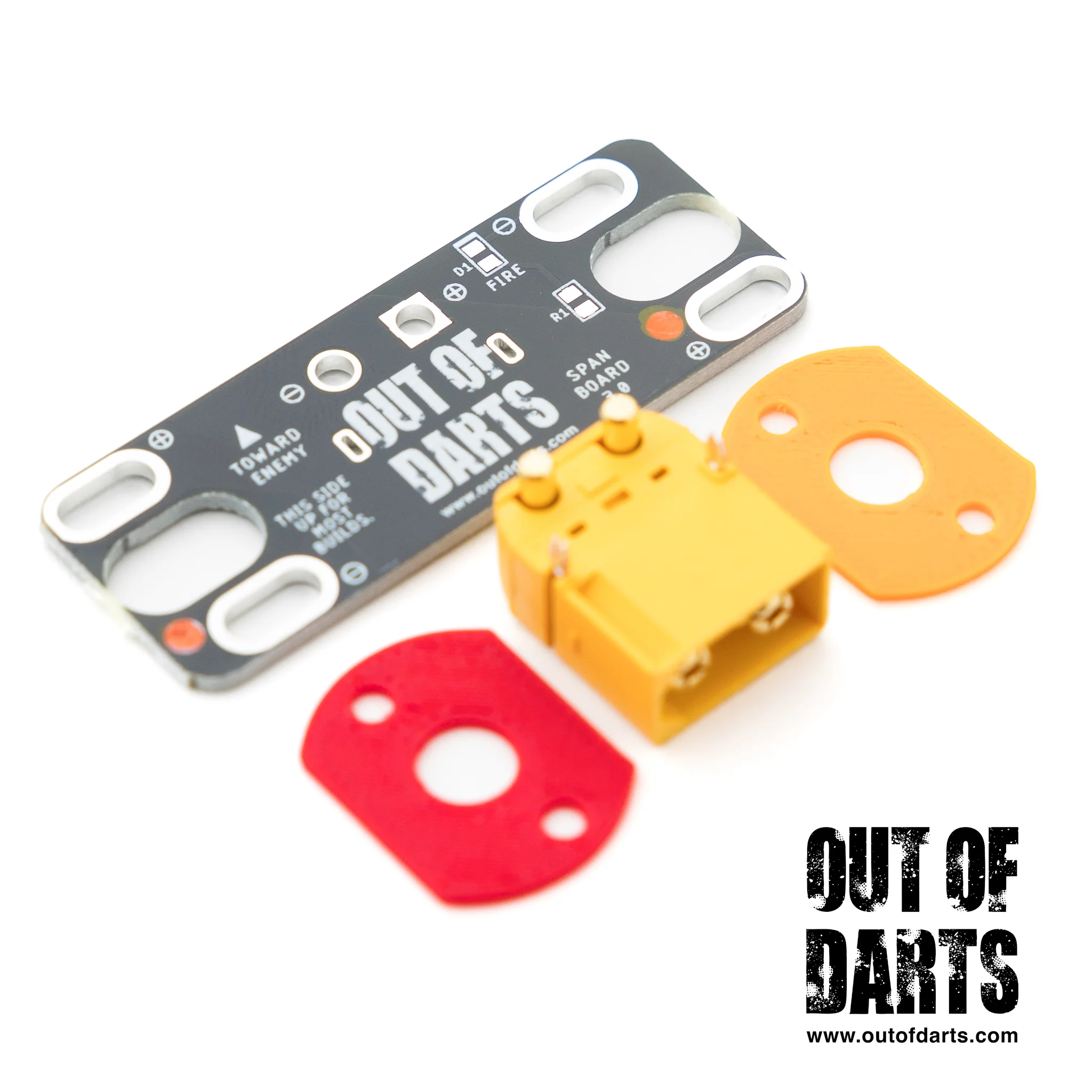

*Due to design changes, the new MOSFET span boards may appear different to photos shown.

SPECS:
• Material: Printed Circuit Board
• Rating: 1 pair (2) 130-sized brushed motors*
• Compatible Crush: 37-44mm (shaft-to-shaft)
• Dimensions:
• Weight:

*A note about motor and MOSFET ratings; Our community often overestimates motor current ratings, as many of these are done on paper. Stall current is extremely brief. Because of this, we have rated each of these MOSFET products by the number of motors they can support. We warranty them for this use, rather than giving specific ratings.
